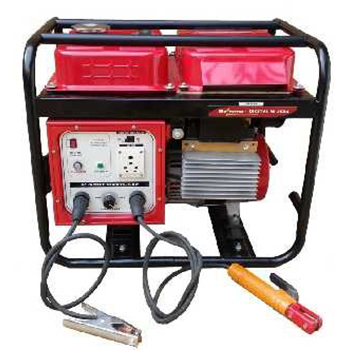

Portable Welding Generator 250 Amp

Portable Welding Generator 250 Amp

98,550 INR/Unit

Product Details:

  • Product Type Generator
  • Output Type AC
  • Rated Power 250 Amp
  • Rated Voltage 250 Volt (V)
  • Starting Type Electric Start
  • Supply Ability : 500 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 98,550 INR/Unit
  • 1 Unit

Product Specifications

  • Generator
  • Electric Start
  • AC
  • 250 Volt (V)
  • 250 Amp

Trade Information

  • 500 Unit Per Month
  • 2 Days
  • No
  • Carton Boxes
  • All India

Product Description

Portable Welding Generator 250 Amp is a power converter which uses mechanical energy generated by the single cylinder air-cooled 4-stroke petrol engine with a fuel tank capacity of 15.5 liters and consumption rate of 1 liter per hour which makes it highly efficient. It is also equipped with a SCR controlled three phase rectifying bridge. It is equipped with a jumper cables for the transmission of the generated power to the welding machines.

Technical Specification :


D C WELDING

Model

Digital -W 250

Maximum Output (Duty Cycle 60%)

250 Amps.

Working Voltage

20v to 35 v

Open Circuit Voltage

70 Volt (Maximum)

Current Regulation Amps

*40-250 Amps.

Rectifying Mode

SCR, Phase Controlled 3-phase, Rectifying Bridge

Maximum Electrode diameter

2.6 mm to 4.0 mm

AC GENERATOR

Type

Brush less with Rear Earth Magnet Rotor.

AC. Voltage On Eco Mode

220 Volts + 10 Volts, Single Phase

AC. Voltage On Power Mode (No Load)

250 Volts + 10 Volts, Single Phase

Rated Current

7.5 Amps.

NFB

7.5 Amps.

Rated Power

1800 VA

Peak Power

2000 VA

Frequency

50 Hz

Class of Insulation

F

ENGINE

Model

HM 170FB

Type

Single Cylinder Air-cooled; 4-stroke, OHV 25o Inclined

Maximum Power

7.5 HP

Bore x Stroke

70x58 mm

Displacement

223 cc

Starting System

Recoil Start

Ignition System

TCI (Transistor Control Ignition)

Fuel

Standard Petrol

Fuel Tank Capacity

15.5 Liters

Fuel Consumption # Ltr./Hr.

1.0 Ltr./hr.

Continuous Operating Hour

15 hr.

Lube. Oil Capacity

600 ml.

Lubricating Oil Consumption

2.5 gm./Hr.

Standard Accessories

AC Plug

1 Pcs.

Tool Kit

1 Set

Welder Holder

1 Set

Earthing Clamp with Cable

1 Set

Oil Funnel

1 No.

Owners Manual

1 No.

Optional

Accessories

Sheet Metal Welding Attachment (Helps to adjust low current upto 50 Amps.)

1 Kit (Additional Cost)

Costar Wheels

Optional (wheels and handle sets) @additional cost

Panel & Other Standard Features

A.C. Circuit Protector

Yes

Engine Oil Protection

Electronic Oil Alert & Indicator

Fuel Level Gauge

Yes

A.C. Output Sockets

1 Nos.

Packing

Dimension LxWxH (mm)

750*550*675 mm

Dry Weight (Kgs.)

53 Kgs.

Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
