Technical Specification :

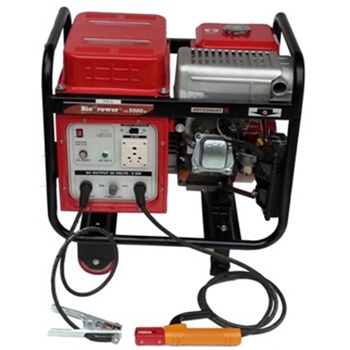

D C WELDING |
Model |
HPW 175 D |
Maximum Output (Duty Cycle 60%) |
175 Amps. |
|
Working Voltage |
20v to 30 v |
|
Open Circuit Voltage |
65 Volt (Maximum) |
|
Current Regulation Amps |
*40-175 Amps. |
|
Rectifying Mode |
SCR, Phase Controlled 3-phase, Rectifying Bridge |
|
Maximum Electrode diameter |
2.6 mm to 4.0 mm |
|
AC GENERATOR |
Type |
Brush less with Rear Earth Magnet Rotor. |
AC. Voltage On Eco Mode |
220 Volts + 10 Volts, Single Phase |
|
AC. Voltage On Power Mode (No Load) |
250 Volts + 10 Volts, Single Phase |
|
Rated Current |
12 Amps. |
|
NFB |
12 Amps. |
|
Rated Power |
2500 VA |
|
Peak Power |
3000 VA |
|
Frequency |
50 to 60 Hz |
|
Class of Insulation |
F |
|
ENGINE |
Model |
HM 170FB |
Type |
Single Cylinder Air-cooled; 4-stroke, OHV 25o Inclined |
|
Maximum Power |
7.5 HP |
|
Bore x Stroke |
70x58 mm |
|
Displacement |
223 cc |
|
Starting System |
Recoil Start |
|
Ignition System |
TCI (Transistor Control Ignition) |
|
Fuel |
Standard Petrol |
|
Fuel Tank Capacity |
20 Liters |
|
Fuel Consumption # Ltr./Hr. |
1.0 Ltr./hr. |
|
Continuous Operating Hour |
20 hr. |
|
Lube. Oil Capacity |
600 ml. |
|
Lubricating Oil Consumption |
2.5 gm./Hr. |
|
Standard Accessories |
AC Plug |
1 Pcs. |
Tool Kit |
1 Set |
|
Welder Holder |
1 Set |
|
Earthing Clamp with Cable |
1 Set |
|
Oil Funnel |
1 No. |
|
Owners Manual |
1 No. |
|
Optional Accessories |
Sheet Metal Welding Attachment (Helps to adjust low current upto 50 Amps.) |
1 Kit (Additional Cost) |
Costar Wheels |
Optional (wheels and handle sets) @additional cost |
|
Panel & Other Standard Features |
A.C. Circuit Protector |
Yes |
Engine Oil Protection |
Electronic Oil Alert & Indicator |
|
Fuel Level Gauge |
Yes |
|
A.C. Output Sockets |
1 Nos. |
|
Packing |
Dimension LxWxH (mm) |
750*550*675 mm |
Dry Weight (Kgs.) |
53 Kgs. |
|
Above Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation |
